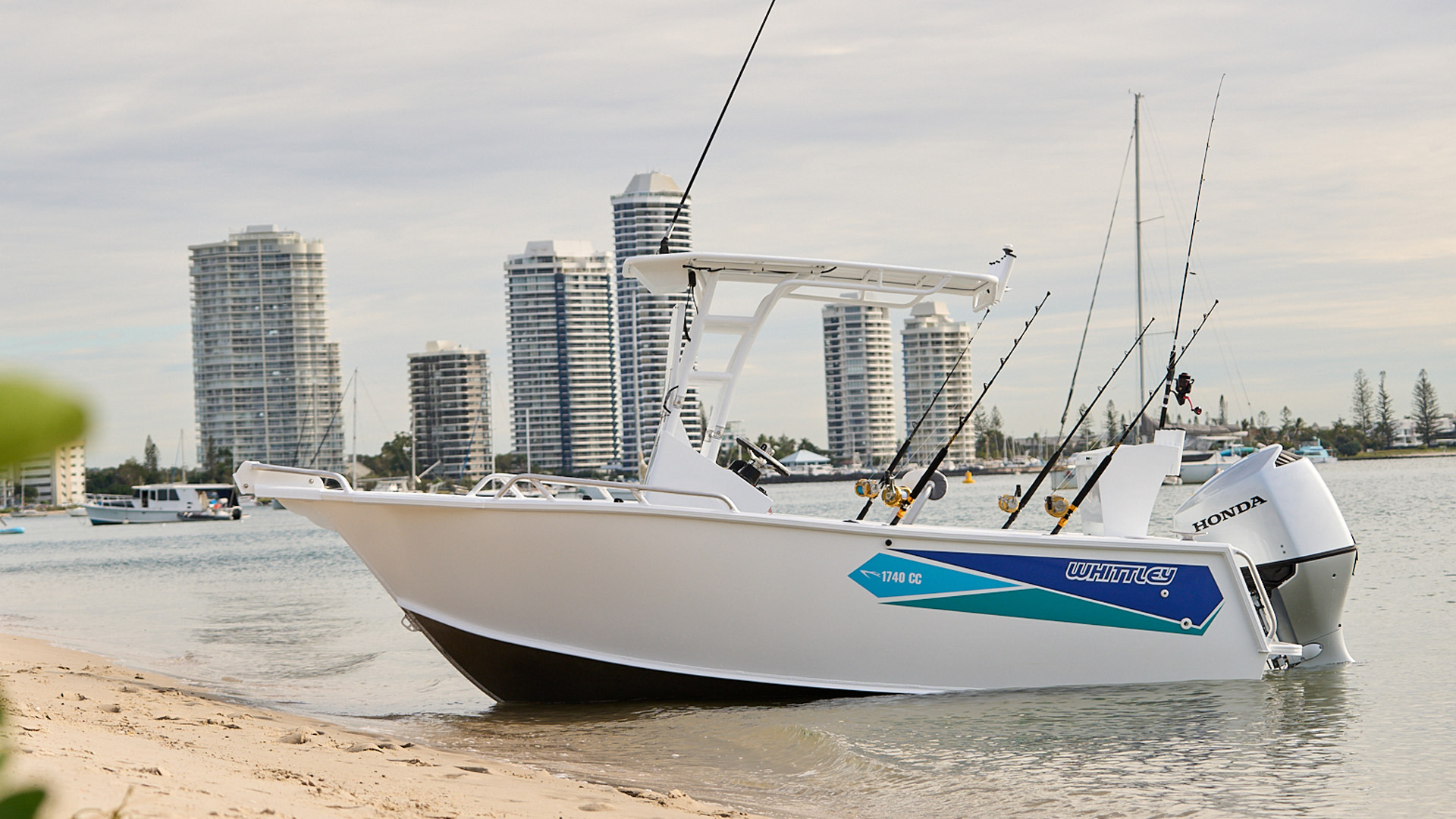

AL 1740 CC

When it comes to boat design lay outs, the Whittley Team know that dedicated anglers have a long love affair with centre consoles as they offer a 360-degree fishing option. The Whittley AL 1740 CC allows for a full circumference to be fished wish ease. Centre console designs are also sort after by divers and are the perfect boat for general exploring whilst out on the water. Featuring Whittley’s class leading designed Fast Back Transom, raised casting platform, broad beam and fuel-efficient plate alloy hull the AL 1740 CC is the built tough do it all boat in the AL series by Whittley. Featuring a high tensile 4 mm 5083 bottom sheet and a 4 mm Frame GRID Fully Welded Hull, for heavy duty boating!

Driveaway from $85,995.00^

DOWNLOAD SPECS

A HIGH TENSILE BOTTOM PLATE ALLOY, MATCHED WITH THE WHITTLEY SUPER STRENGTH FRAME GRID FULLY WELDED HULL

For those wanted to explore the top end and beach your boat, and venture with confidence the AL 1740 CC is your ticket to unbridled freedom.

32 MM HEAVY DUTY BOW RAILS AND SUPER STRONG REAR DIVE LADDER, EVERYTHING ABOUT THE AL 1740 CC IS STRONG

Super strong and super ready, the AL 1740 SC is the only plate alloy boat built by Whittley and its built super tough.

“Tough, rugger offshore centre consoles haven’t traditionally been a Whittley hallmark, but here we are the perfect boat for northern QLD or WA offshore hard-hitting boating.”

Alan Whittley, Director of Sales & Marketing WMG

AL 1740 CC Technical Specifications

Max People 5
Overall Length 5.40m
Length on Trailer 6.75m*
Height on Trailer 2.55m* [targa folded]
Width on Trailer 2.35m
Beam 2.40m
Bottom Sheet 4.0mm
Side Sheet 4.0mm
Fuel Capacity 150L (under floor)
Dry Towing Weight (base boat package) 1280kg** [approximately]
Standard Engine Honda BF135
Maximum Horsepower 140hp
Maximum Weight On Transom 221kg
Standard Dunbier Trailer LPA 5.3M-14B
